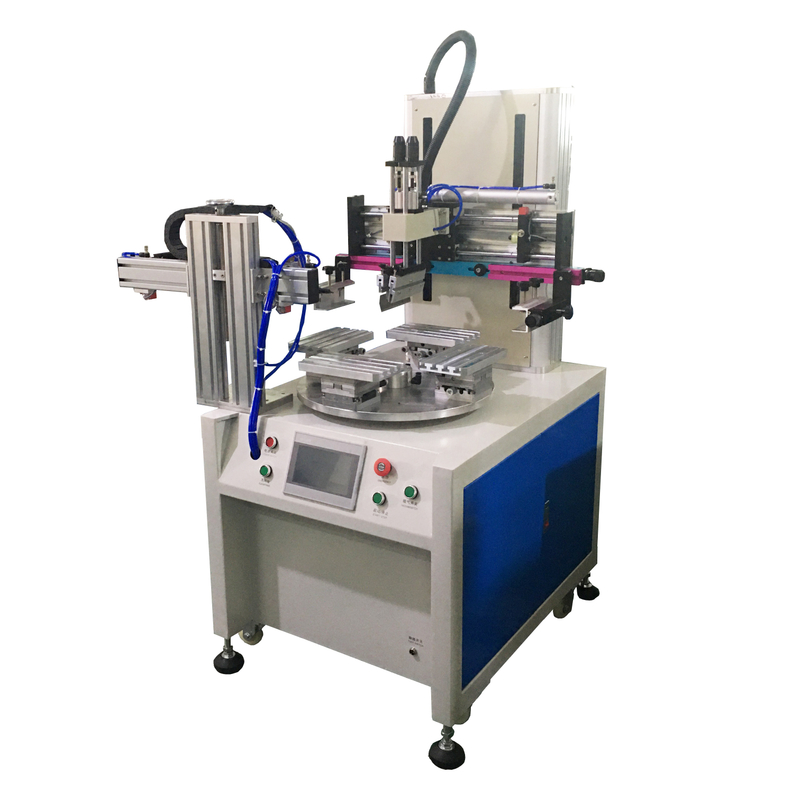

Rotary Screen Printing Machine with UN-Loading Robot (HX-500RJ/4)

Share to:

Model: HX-500RJ/4


Table Diameter: 500mm


Print Size: 100*200mm


Machine Speed: 1200 - 1500cycles/hr


Vertical Stroke: 100mm



Transverse Stroke: 350mm



Payment Terms: T/T, L/C, Paypal


Package: Plywood

Availability:
Quantity:
  • HX-500RJ/4
  • HX
  • 8443.1922.90

Machine Summary:
This machine is a high speed and precise screen printer, using Taiwan Mechanical cam divider compose high speed rotary table, which have no shack when Printing, because of having more workstations, you can pick and place work piece at the same time. The speed is very quick, can be up to 1500pcs/hr. It's the first choice for you to do large quantity printing.


Features:
1. SCM IC coordinate light touching panel to compile action programming;
2. Auto 4-digit counter built-in, counting printing quantity;
3. Airframe adopts coin alloy, and metal coating surface;
4. Distyle vertical structure, high precision, steady operation;
5. The transverse stroke can be adjusted, spacing by Taiwan electronic switch;
6. The angle of scraper and ink covering blades can be adjusted randomly;
7. Installing scraper constant pressure equipment to make sure pressure is steady when printing;
8. You can regulate work-table back and forth or right and left, and then fastening it;
9. You can regulate screen frame back and forth, right and left or level orientation;
10. T-slot worktable, convenient to install mould;
11. Installing CEC oil buffer on up and down, left and right to avoid printing shocking;
12. The machine is running fast, stably and lower noise;


Technical Parameter:

Action Model OptionAutomatic | Semi-Automatic | Manual
Start-up MethodPadel | Panel
Vertical DrivenPneumatic
Transverse DrivenCylinder | Gear Motor | Servo Motor
Un-loading Robot DrivenCylinder | Stepper Motor
Vertcial Stroke100mm
Transverse Stroke350mm
Round Worktable Diameter500mm
Print Size100*200mm
Machine Speed1200 - 1500 cycles/hr
Max Height of Product50mm
Power Supply220V, 50HZ
Air Supply5 ~7 Bar
