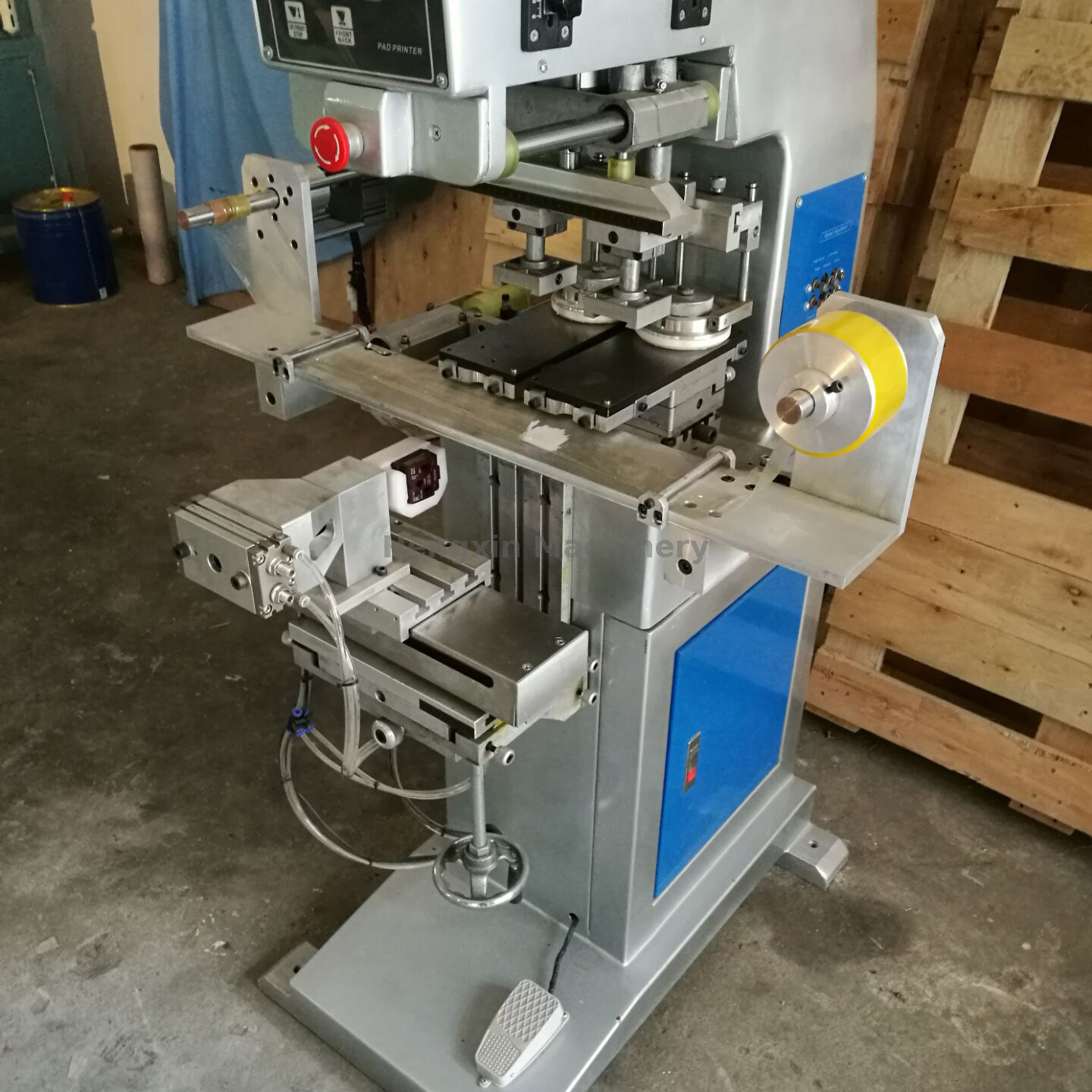

2 Color Pneumatic Pad Printer with Shuttle (P2/SK)

Share to:
Model:P2/SK

Print Speed:800pcs/hr

Print Size:70*100MM

Machine Dimension:750*550*1380MM

Machine Weight:135KG

Availability:
Quantity:
  • P2/SK
  • HX
  • 8443.1980.00

Technical Parameter:

Name2 color pneumatic pad printer with shuttle
power110/220V 50-60HZ
Air pressure5~7bar
Steel plate size100*250mm
Printing area70*100mm
Ink cup diameter90mm
Printing speed800times/hr
Max height of product200mm
Transverse stroke160mm
Vertical stroke75mm
Adjustable angle of rubber pad360°
Adjustable angle of worktable±5°
Repeat precision≤0.05mm
Machine dimension700*550*1380mm
Machine weight135KG
