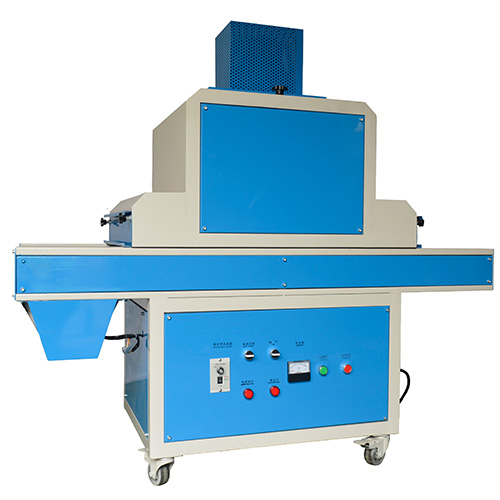

Flatbed UV Coating Machine (HX-UV500)

Share to:

Model: HX-UV500


No. of UV Lamp: 2pcs


UV Lamp Power: 3KW/PC


Belt Width: 500mm


Machine Weight: 180kg



Machine Dimension: 2000*600*1500mm



Payment Terms: T/T, L/C, Paypal


Package: Plywood

Availability:
Quantity:
  • HX-UV500
  • HX

Application:
It suitable for curing kinds of products after screen printed/offset printed with uv printing ink.Such as paper,glass,aluminum/metal sheet,PCB board,arylic plate,plastic bag,paper bag,textile....etc


Advantages:
1. Made by high temperature conveyer belt;
2. Famous brand motor drive,stepless speed adjustment;
3. High quality UV lamp to ensure exposure power;
4. Taiwan transformer,startup organ . long life to use;
5. With convulsions function to remove quantity of heat in curing case;


Technical Parameter:

Conveyor width500mm
UV Lamps total wattage6KW
Fan wattage220W /220V
Conveyor motor wattage1000W / 1P / 220V
conveyor speed0 ~ 10m/min
speed adjustmentstepless
outer dimension2000*600*1500mm
Net weight180kg
Max height of products75mm
power380V, 3 Phase
