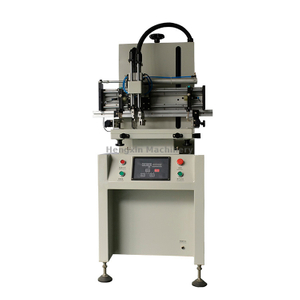

Pneumatic Vertical Flat Screen Printer with High Precision


Share to:

Machine Speed:800 cycles/hr

Print Size:300*500 mm

Machine Dimension:850*800*1500 mm

Machine Weight:330 kg
  • HX-3050

  • HX

  • 8443.1922.90


It is a pneumatic vertical flat screen printing machine with high precision, adopting Japan and TAIWAN pneumatic parts, controlling left / right, up / down by cylinder, stable moving, small shaking, correct over-printing. The printing precision can be up to ± 0.05MM, printing speed can be up to 800~1000pcs/hr. It is suitable for flat products with printing size within 300*500MM, such as paper, PVC film, plastic film, textiles, keyboard, circuit plates, CD, plastic boxes etc.


1. IC coordinating soft-touch panel compile program;
2. Auto 4-digit counter built-in for counting print quantity;
3. Kinds of printing cycle designed by printing action, you can be free to choose according to your printing craftwork;
4. Air frame adopts coin alloy,and metal coating surface;
5. Di-style vertical construction, high precision, steady operation;
6. Installing squeegee constant pressure equipment to make sure pressure is steady when printing;
7. The angle of print squeegee and ink collect squeegee can be adjusted randomly;
8. You can regulate work-table back and forth or right and left, and then fastening it;
9. You can regulate screen frame back and forth, right and left or level orientation;
10. Printing head can be lifted up, that is convenient to pick-and-place screen frame;
11. Adopting Germany ORIGA rod less cylinder to drive transverse moving, Taiwan Ruike electronic switch to drive transverse stroke;
12. Finished and high-strength hard work-table with even suction hole and high vacuum, that can make sure overprinting accurately.
13. Installing scramming device on work-table, in order to avoid injuring hands;
14. installing Taiwan CEC buffer to removing shaken;
15. The machine is running fast, it is steady and low voice;

Technical Parameter:

Action Model Option

Auto | Semi-auto | Manual

Start Method

Panel | Pedal

Squeegee Pressure Control

Regulating Valve

Vertical Driven


Transverse Driven


Vertical Stroke

100 mm

Transverse Stroke

600 mm

Machine Speed

800 cycles/hr

Max Print Size

300*500 mm

Worktable Size

400*600 mm

Max Screen Frame Size

550*850 mm

Max Height of Object

50 mm

Worktable Option

T-slot | Vacuum

Power Supply

AC 110/220V, 50/60Mhz

Air Supply

5 ~7 Bar

Machine Dimension

850*800*1500 mm

Machine Weight

330 kg
