Automatic Screen Printer for Plastic Cups (HX-1SR-LED)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Model: HX-1SR-LED


Print Size: 320 ~ 100mm


Print Speed: 3000 - 3500 cycles/hr


Machine Dimension: 2500*1500*1550mm


Machine Weight: 1200 kg


Payment Terms: T/T, L/C, Paypal


Package: Plywood


Availability:
Quantity:
  • HX-1SR-LED

  • HX

  • 8443.19

Automatic Screen Printer for Plastic Cups


Specifications:

  1. PLC program and Touch screen control panel;

  2. Automatic feeding and unloading device, high speed save labor energy;

  3. Pre-press surface treatment, corona and flame for choice;

  4. Printing function 1 color or 2 color optional;

  5. Automatic registration system, used for multi-color process printing, very accurate;

  6. Automatic Sensor, no cup, no printing;

  7. LED UV Curing system for optional;

  8. Humanize Customized and change mould/jig for fix cup with different size


Technical Parameters:


Max.printing area
320*100mm
Max.screen frame size
450*200mm
Air pressure
5-7 Bar
Electric voltage
220V 1 Phase
Total Workstations
12 pcs
Dimension
2500*1500*1550mm
Weight
1200KG

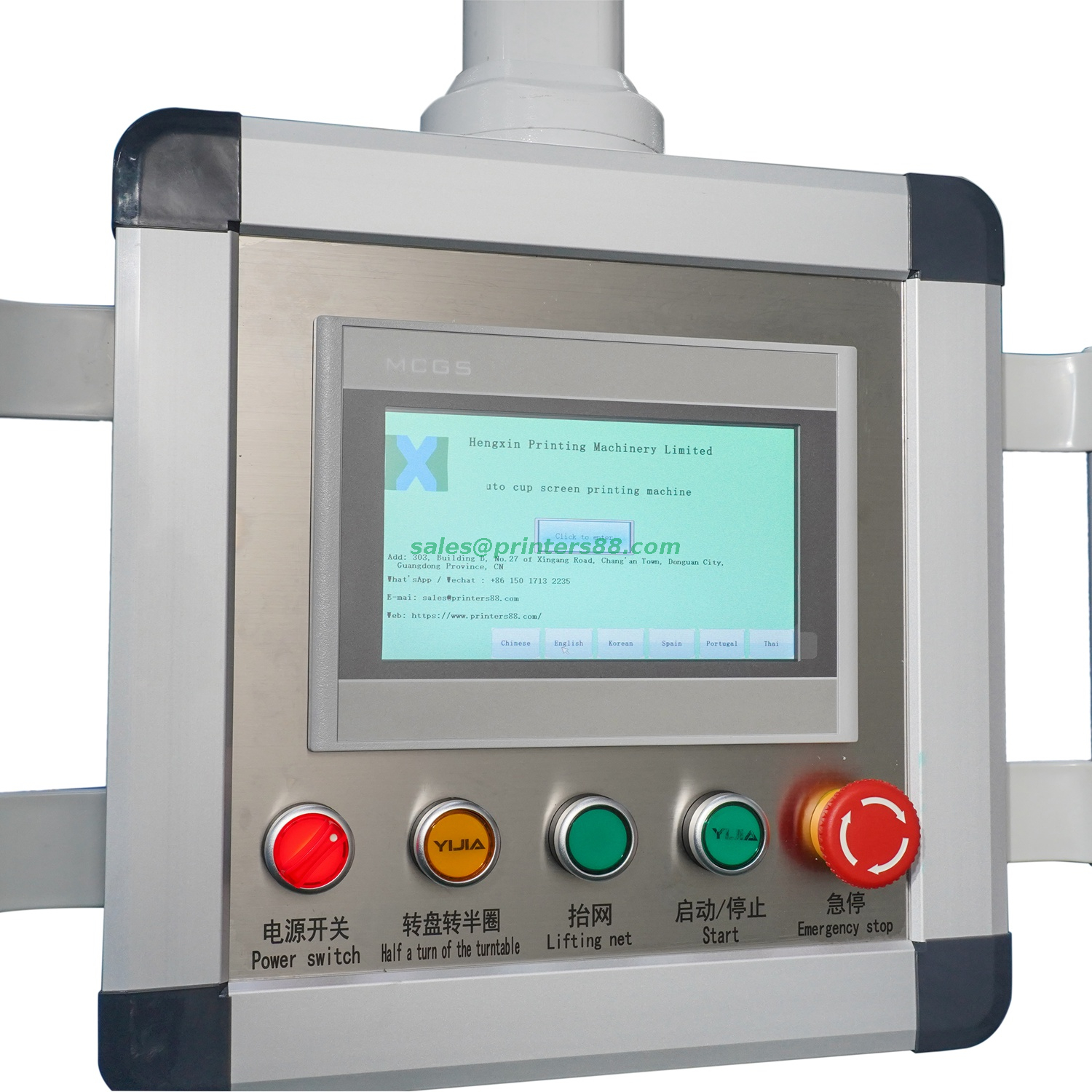

DSC09210

Operation Panel

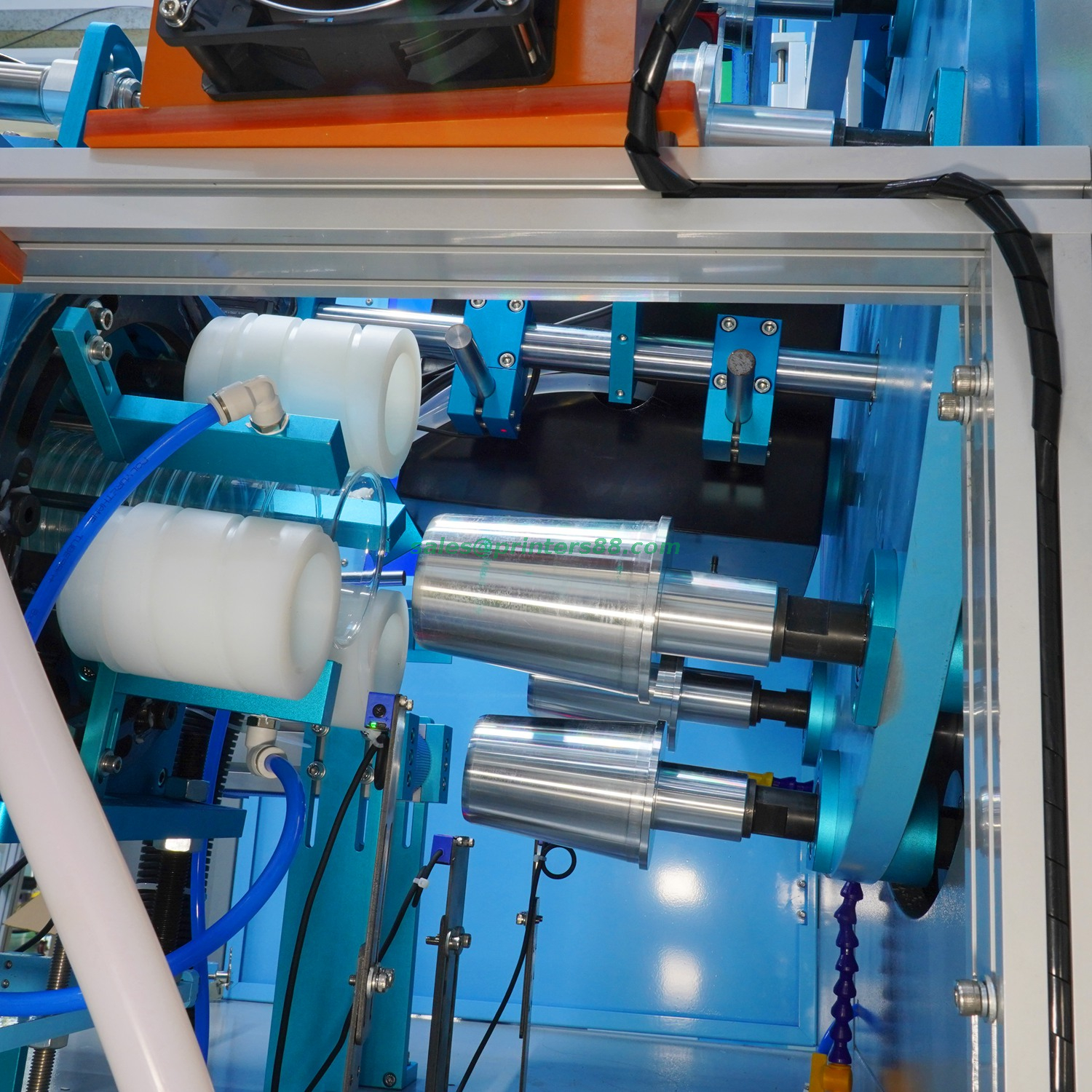

DSC09237

Auto Loading

DSC09226

Corona Treatment


IMG_8459

Auto - Locating

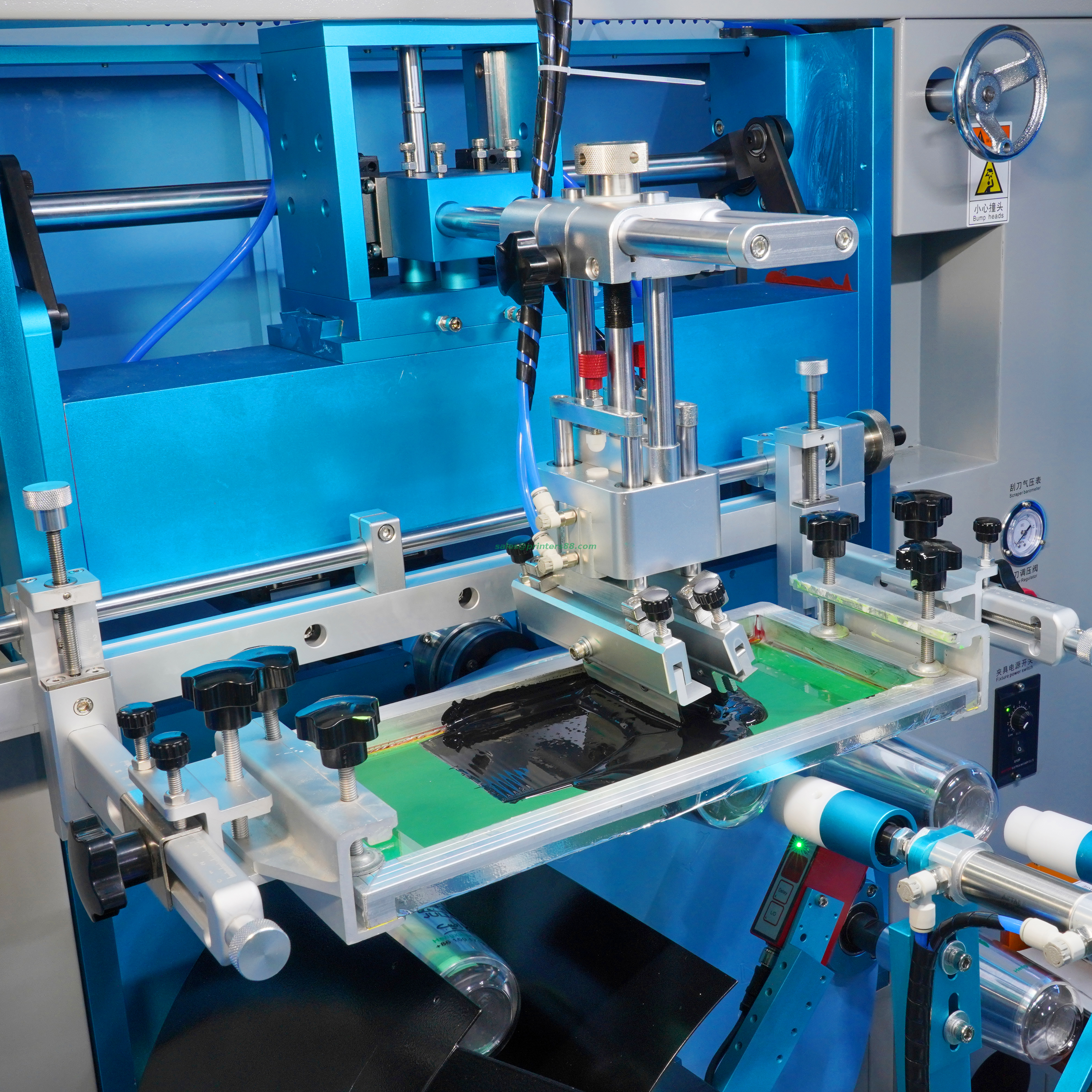

DSC09232

Auto - Printing

IMG_8460

Auto - UN-Loading
