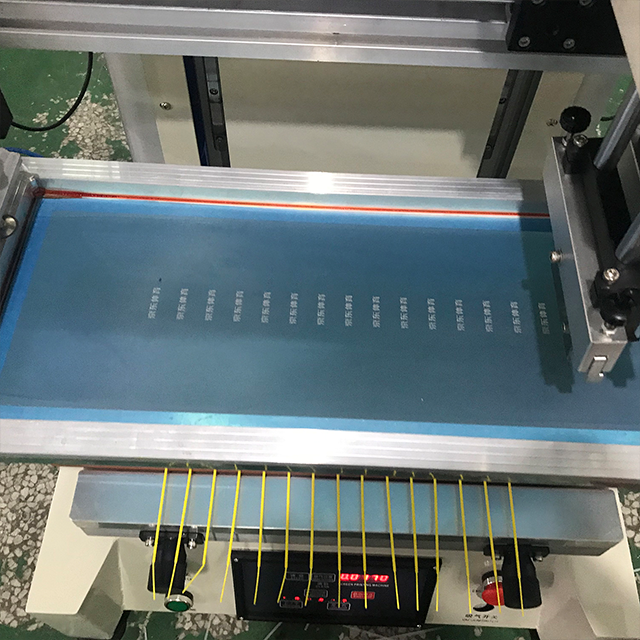

Tabletop Screen Printer With T-Slot Worktable (HX-2030T)

Share to:
Model:HX-2030T

Machine Speed:600-800pcs/hr

Print Size:200*300MM

Machine Dimension:680*770*870MM

Machine Weight:125KG

Availability:
Quantity:
  • HX-2030T
  • HX
  • 8443.1922.90

Application:

It is a small size flat screen printing machine with small profile, fast and steady printing speed. It can make up screen printing production line in small factory. It is suitable for printing products which surface is flat,such as paper,PVC sheet, mobile button, CD box, gift boxes etc.

Function:

1. SCM IC coordinate light touching panel to compile action programming;

2. Auto 4-digit counters built-in, counting printing quantity;

3. Air frame adopts coin alloy, and metal coating surface;

4. Di-style vertical structure, high precision, steady operation;

5. The transverse stroke can be adjusted, spacing by Taiwan electronic switch;

6. The angle of print squeegee and ink collect squeegee can be adjusted randomly;

7. Installing squeegee constant pressure equipment to make sure pressure is steady when printing;

8. You can adjust work-table front and back or right and left, and then fastening it;

9. You can adjust screen frame front and back, right and left or level orientation;

10. T-slot worktable, convenient to install jig;

11. Installing CEC oil buffer on up and down, left and right to avoid printing shock;

12. The machine is running fast, stably and lower noise;

Technical Parameter:

Action Model Option

Auto | Semi-auto | Manual

Start Method

Panel | Pedal

Squeegee Pressure Control

Regulating Valve

Vertical Driven

Pneumatic

Transverse Driven

Pneumatic

Vertical Stroke

160 mm

Transverse Stroke

350 mm

Machine Speed

600 - 800 cycles/hr

Max Print Size

200*300 mm

Worktable Size

250*450 mm

Max Height of Object

100 mm

Workstation

1 pc

Power Supply

AC 110/220V, 50/60Mhz

Air Supply

5 ~7 Bar

Machine Dimension

680*770*870 mm

Machine Weight

125 kg
