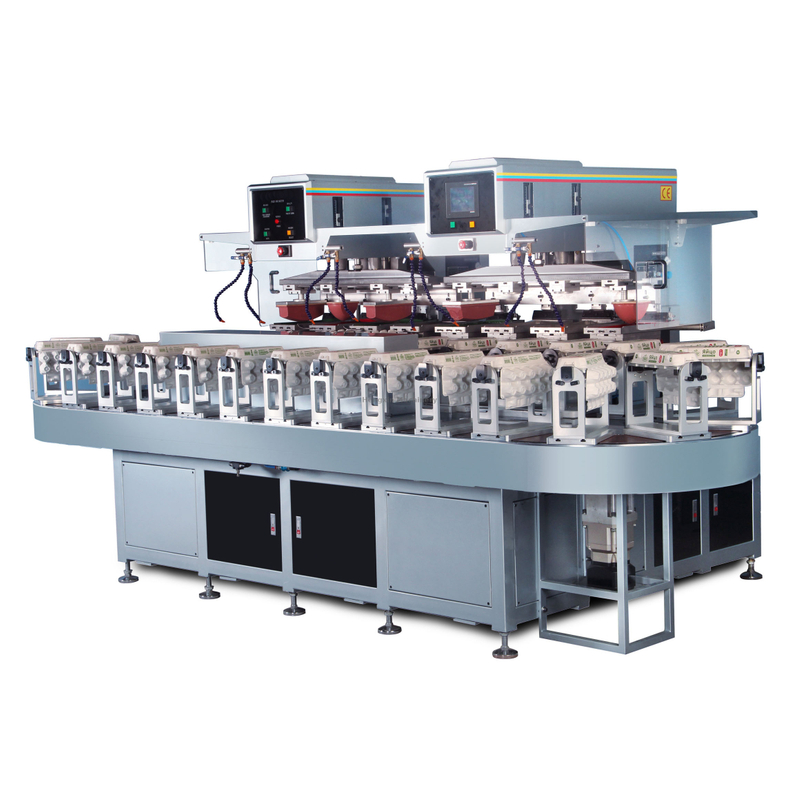

Eight Color Pad Printer for Egg Tray (M8/C-D610)

Share to:
Model:M8/C-D610

Machine Speed:800 pcs/hr

Plate Size:150*250MM

Package:Exported Plywood

Payment Terms:T/T, L/C, Paypal

Availability:
Quantity:
  • M8/C-D610
  • HX
  • 8443.1980.00

Application:

For printing egg boxes with 3 sides at a time.


Function:

1. SCM IC compile action program,kinds of printing model option;

2. Auto 4-digit counter built-in to count printing quantity;

3. Air-frame adopts coin alloy, and metal coating surface;

4. Worktable, printing head and ink tray can be adjusted X. Y. Z direction;

5. The pressure of sucking ink and printing object can be adjusted independently;

6. Scrapper stroke can be adjusted;

7. It has function of leveling ink by sliding automatically on front /back, this can avoid printing ink partial solidification;

8. The speed of all the cylinders have an independent regulator valve;

9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component;

10. Each adjustable location has scale logo;

11. Control print head by double cylinders to keep stable pressure;

12. With a handle on middle of machine for making to set machine and change steel plate easily;

13. It has the function of forbidding the pad fallen when no air pressure enter into;

14. With air cooling system;

15. The machine is running fast, it is steady and low voice;

Technical Parameter:

Print Color

8

Machine Speed

1000 cycles/hr

Steel Plate Size

100*200 mm

Print Size

60*170 mm

Pad Vertical Stroke

75 mm

Pad Transverse Stroke

200 mm

Max Size of Object

100 * 200 mm ( L * W )

Central Distance of Ink Tray

127 mm

Workstations

20 pcs

Scraper Driven

Pneumatic mechanical valve drives cylinder up and down

Scraper Pressure Control

Regulating valve

Turntable Driven

Pneumatic (rod less cylinder)

Turntable Located

Pneumatic bolt with oil buffer

Power Supply

AC 110/220V, 50/60Mhz

Air Supply

5 ~7 Bar

Machine Dimension

1350*1500*1500 mm

Machine Weight

320 kg
