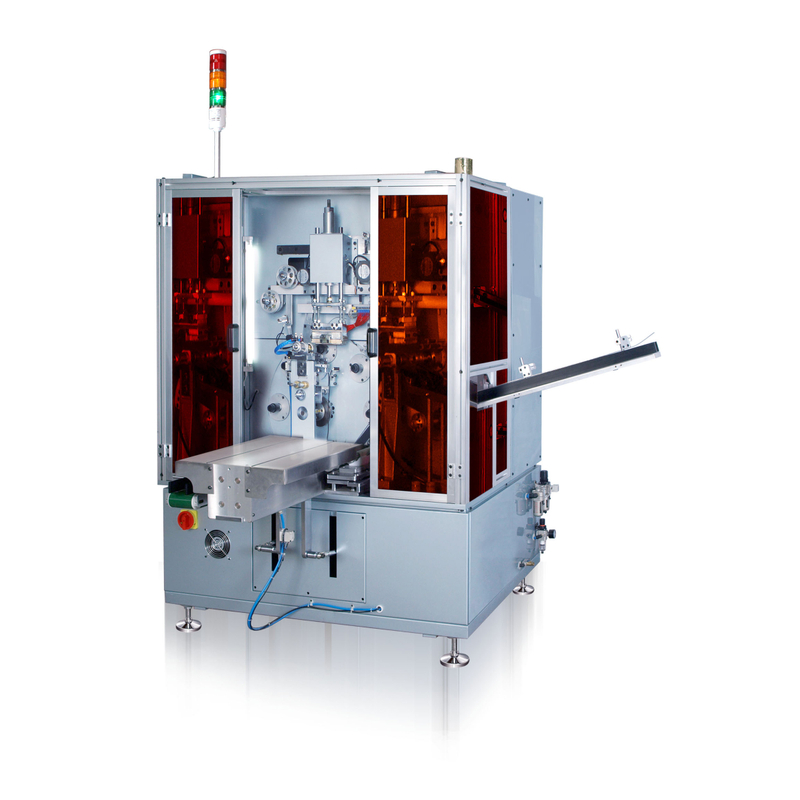

Automatic Hot Stamping Machine for Wine Bottle Caps (HX-150A)

Share to:

Model: HX-150A


Stamping Plate Size: 80*150mm


Machine Speed: 2500 cycles/hr


Machine Dimension: 1950*1550*1800mm


Machine Weight: 1800kg


Payment Terms: T/T, L/C, Paypal


Package: Plywood

Availability:
Quantity:
  • HX-150A
  • HX
  • 8443.39

Technical parameter:
1. Speed: 2500pcs/hr ;
2. Hot stamping plate size: 80*150mm ;
3. Stamping area: Diameter 18 - 45mm ;
4. The max length of foil paper: 145mm ;
5. The height of work piece: 20 - 85mm ;
6. Power supply: 4.5KW, 380V, 50/60HZ ;
7. Air supply: 5 - 7Bar ;
8. Net weight: 1800KG ;
9. Machine dimension: 1950*1550*1800mm ;
10.Workstation: 8pcs ;

Function:
1. Using PLC + HMI to compile work actions ;
2. 8 workstaions, easy to change jigs ;
3. Loading & down-loading automatically ;
4. No products, no stamping system ;
5. No products alarm system ;
6. Low air supply alarm system ;
