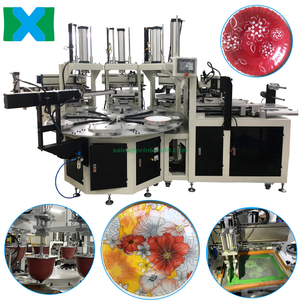

Total Transfer Pad Printing Machine for Decoration Glassware (HX-300-6PS)

Share to:
Model:HX-300-6PS

Print Speed:250pcs/hr

Print Size:280*280MM

Package:Exported Plywood

Payment Terms:T/T, L/C, Paypal

Availability:
Quantity:
  • HX-300-6PS
  • HX
  • 8443.1980.00

Technical Parameter:

1. Control system: PLC + HMI ;

2. Print system: screen printing + pad printing (screen printing to print design on glass plate, pad printing transfer design from glass plate to plates);

3. Driven pad up/down by cylinder;

4. Driven glass plate front/back by cylinder ;

5. Driven screen printing transverse by servo motor;

6. Driven turntable by servo motor ;

7. Max print color: 6 ;

8. Workstations: 10 pcs ;

9. Max print diameter: 280mm ;

10. Machine speed: 250 cycles/hr ; (print 1 color, 6 pcs at a time ; print 2 color, 3 pcs at a time; )

11. With temperature control system for heating screen frame to 80ºC;

12. Using Schneider electronic parts ;

13. Power supply: 220V, single phase ;

14. Air supply: 6 ~ 8 Bar ;
