1. Control system: PLC + HMI ;

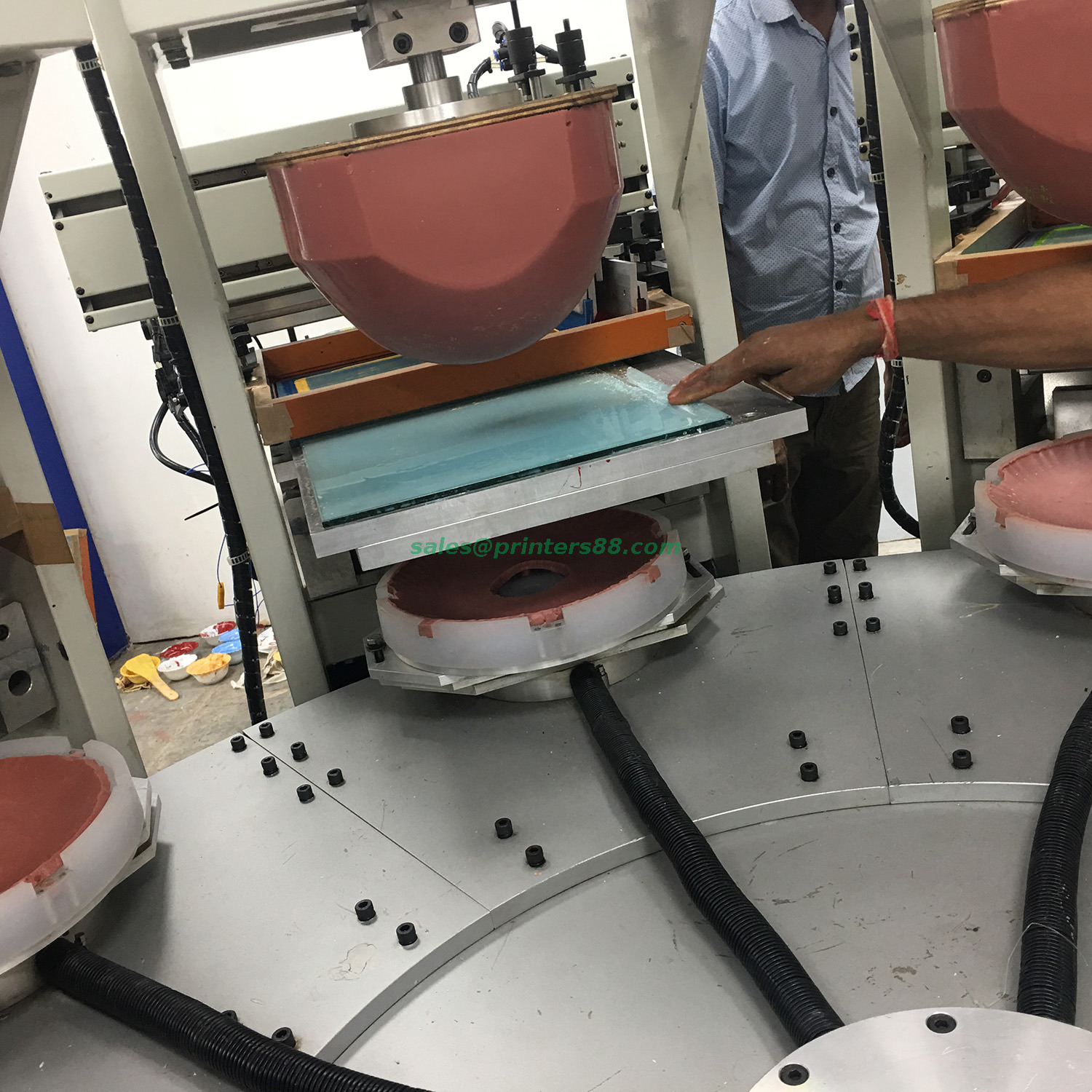

2. Print system: screen printing + pad printing (screen printing to print design on glass plate, pad printing transfer design from glass plate to plates);
3. Driven pad up/down by servo motor;
4. Driven glass plate front/back by cylinder;
5. Driven screen printing transverse by servo motor ;

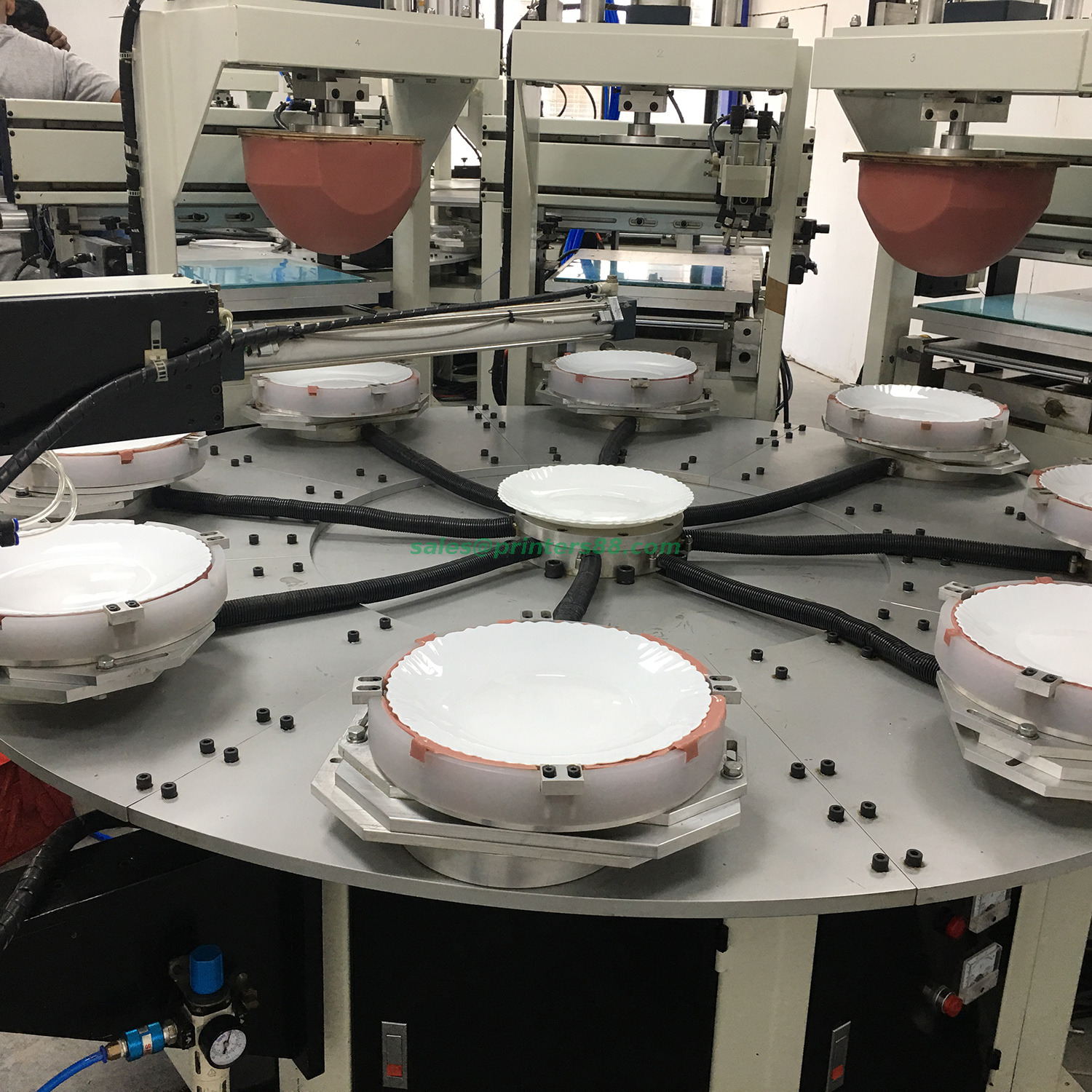

6. Driven turntable by servo motor ;
7. Max print color: 4 ;
8. Workstations: 8 pcs ;
9. Max print diameter: 270mm ;
10. Machine speed: 250 cycles/hr ;
11. With temperature control system for heating screen frame to 80ºC;
12. Using imported electronic parts ;
13. Power supply: 380V, 3 Phase ;
14. Air supply: 6 ~ 8 Bar ;
Machine Configuration | No | Part Name | Brand | Country of Origin |
| 1 | PLC | XINJIE | China |
| 2 | HMI | WEINVIEW | Taiwan |
| 3 | Servo Motor | Delta | Taiwan |
| 4 | Inverter | Delta | Taiwan |
| 5 | Gear Motor | CPG | China |
| 6 | Cam Divider | Sun King | Taiwan |
| 7 | Cylinder | Airtac | Taiwan |
| 8 | Solenoid Valve | MINDMAN | Taiwan |
| 9 | Sensor | Airtac and F&C | Taiwan & China |
| 10 | Guide Rail | HIWIM | Taiwan |
| 11 | Rely | CHNT | China |
| Basic Structure | Machine frame | High quality square pass |
| Sealing plate | High quality cold rolling |
| Other metal parts | Cast aluminum and aluminum alloy |
| Transverse Driven System | Screen Frame Driven | Servo Motor |
| Guide | Synchronous Belt |
| Vertical Driven System | Pad Driven | Servo Motor |
| Guide | Ball Screw Guide |
| Locating System | Pr-Locating | Cylinder |
| Conveyor System | Cam Divider | Sun King |
| Driven | Gear Motor |
| Control System | Control Circuit | PLC + HMI |
| Pneumatic Control | Cylinder |
| Heating Control | temperature controller |
