Triangular Scales Pad Printing Machine

Views: 0     Author: Site Editor     Publish Time: 2022-08-05      Origin: Site

Triangular Scales Pad Printing Machine

triangle ruler




IMG_5299

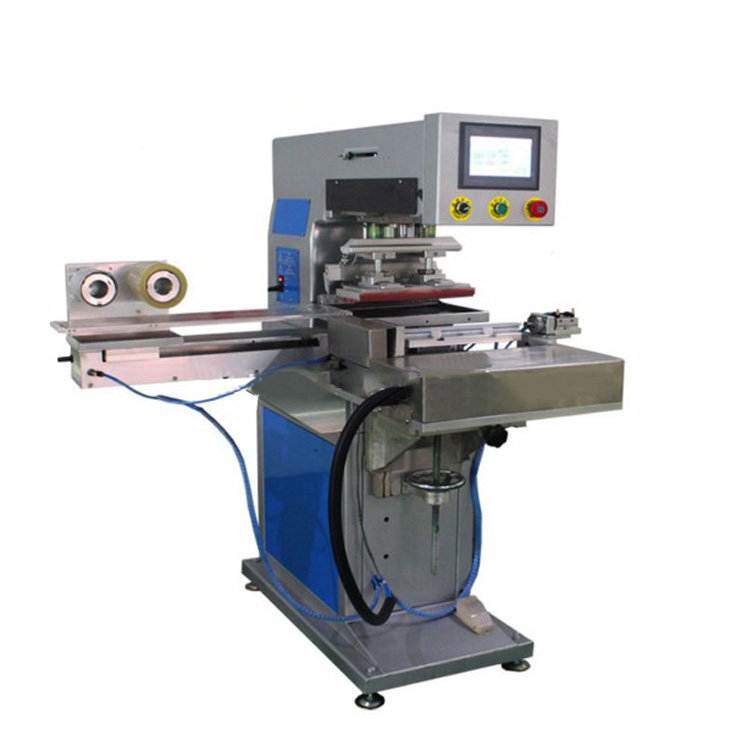

    It's a single color pad printing machine for printing on architect's scale. It can print the 3 sides of triangular scales by one time. Rotate the scales automatically. With auto pad-cleaning system to improve the print quality and reduce the pause time when printing.

    Welcome to inquiry is via E-mail: sales@printers88.com    Wechat & WhatsApp: +86 15017132235


Technical Parameters:

  1. Control System: PLC + HMI ;

  2. Steel Plate Size: 400*200 mm ( L*W) ;

  3. Max Print Size: 350*100mm ;

  4. Machine Speed: 800 - 1000 cycles/hr;

  5. Pad Up / Down Stroke: 75mm ;

  6. Pad Front / Back Stroke: 200mm ;

  7. Power Supply: 110/220V, 50/60Hz ;

  8. Air Supply: 5 ~ 7 Bar ;
