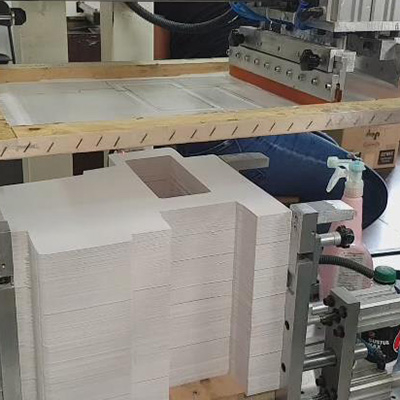

semi automatic window patching machine
Application:
For packing industry, like fooding packing, electronic parts packing etc. Our Romania customer buy the window patching machine for chocolate packing. It's our middle size patching machine.
Technical Parameter:
Model | HX-A | HX-AA | HX-B | HX-C |
| Machine Dimension | 1000*800*1600mm | 1100*800*1800mm | 1200*1000*1800mm | 1400*1200*1800mm |
| Worktable Size | 1000*800*800mm | 1100*800*800mm | 1200*800*800mm | 1400*800*800mm |
| Max Film Size | 350*380mm | 450*380mm | 540*480mm | 800*580mm |
| Max Product Size | 900*800mm | 1000*800mm | 1100*1000mm | 1300*1200mm |
| Min Product Size | 120*20mm | 120*20mm | 140*20mm | 140*30mm |
| Max Screen Frame Size | 630*630mm | 730*730mm | 930*930mm | 1130*1100mm |
| Min Screen Frame Size | 430*200mm | 530*200mm | 630*250mm | 830*350mm |
| Machine Speed | 3500 pcs/hr | 3500 pcs/hr | 3500 pcs/hr | 3500 pcs/hr |
