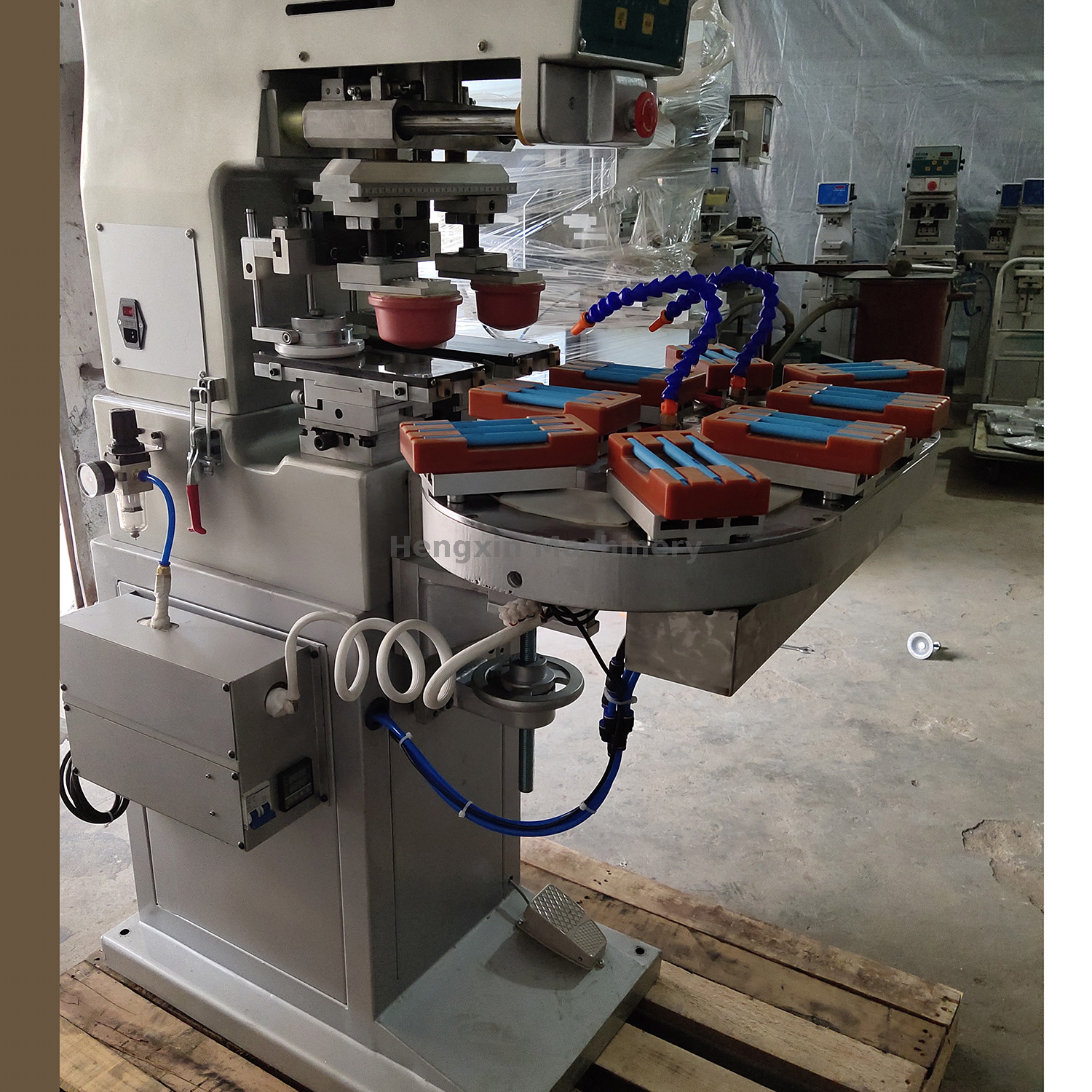

Two Color Pad Printing Machine with Turntable (P2/C)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Model:P2/C

Print Speed:1500 pcs/hr

Print Size:70*120MM

Machine Dimension:950*700*1380MM

Machine Weight:155KG

Availability:
Quantity:
  • P2/C

  • HX

  • 8443.1980.00

Function:

1. SCM IC compile action program,kinds of printing model option;

2. Auto 4-digit counter built-in to count printing quantity;

3. Air-frame adopts coin alloy, and metal coating surface;

4. Worktable, printing head and ink tray can be adjusted X. Y. Z direction;

5. The pressure of sucking ink and printing object can be adjusted independently;

6. Scrapper stroke can be adjusted;

7. It has function of leveling ink by sliding automatically on front /back, this can avoid printing ink partial solidification;

8. The speed of all the cylinders have an independent regulator valve;

9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component;

10. Each adjustable location has scale logo;

11. It has the function of forbidding the pad fallen when no air pressure enter into;

12. The machine is running fast, it is steady and low voice;

Technical Parameter:

Print Color

2

Machine Speed

1500 cycles/hr

Steel Plate Size

100*150 mm

Print Size

60*120 mm

Pad Vertical Stroke

75 mm

Pad Transverse Stroke

160 mm

Max Size of Object

100 * 200 mm ( L * W )

Central Distance of Ink Tray

150 mm

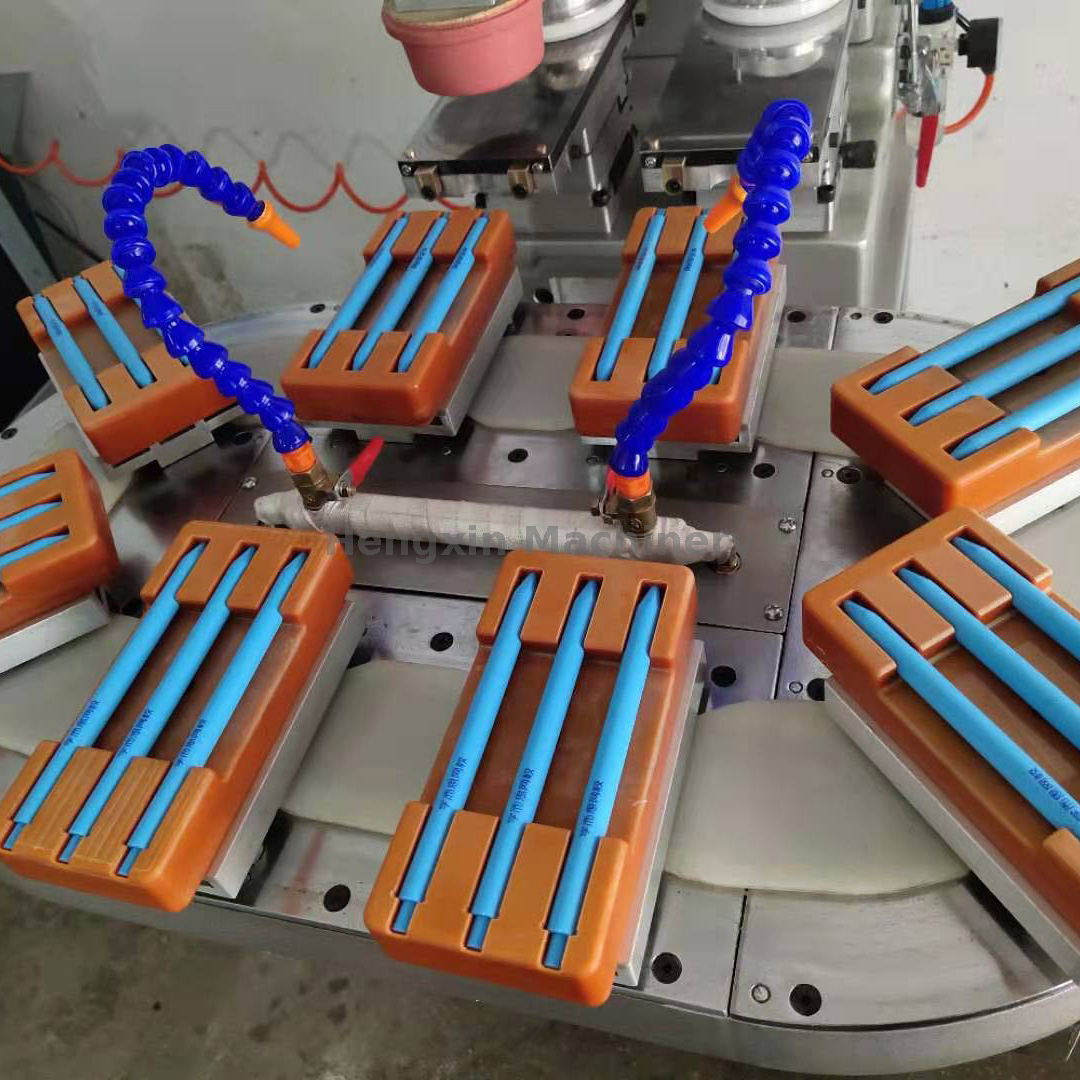

Workstations

8 pcs

Scraper Driven

Pneumatic mechanical valve drives cylinder up and down

Scraper Pressure Control

Regulating valve

Turntable Driven

Pneumatic

Turntable Located

Pneumatic bolt

Power Supply

AC 110/220V, 50/60Mhz

Air Supply

5 ~7 Bar

Machine Dimension

950*700*1380 mm

Machine Weight

155 kg
