MINI Single Color Pad Printer (MINI/BK)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Model:MINI/BK

Print Speed:1000pcs/hr

Print Size:70*70MM

Machine Dimension:570*410*1150MM

Machine Weight:65KG

Availability:
Quantity:
  • MINI/BK

  • HX

  • 8443.1980.00

Technical Parameters:

NameMINI single color pad printer
power110/220V 50-60HZ
Air pressure5~7bar
Steel plate size100*200mm
Printing area70*70mm
Ink cup diameter82mm
Printing speed1000times/hr
Max height of product180mm
Transverse stroke125mm
Vertical stroke75mm
Adjustable angle of rubber pad360°
Adjustable angle of worktable±5°
Repeat precision≤0.05mm
Machine dimension570*410*1150mm
Machine weight65KG

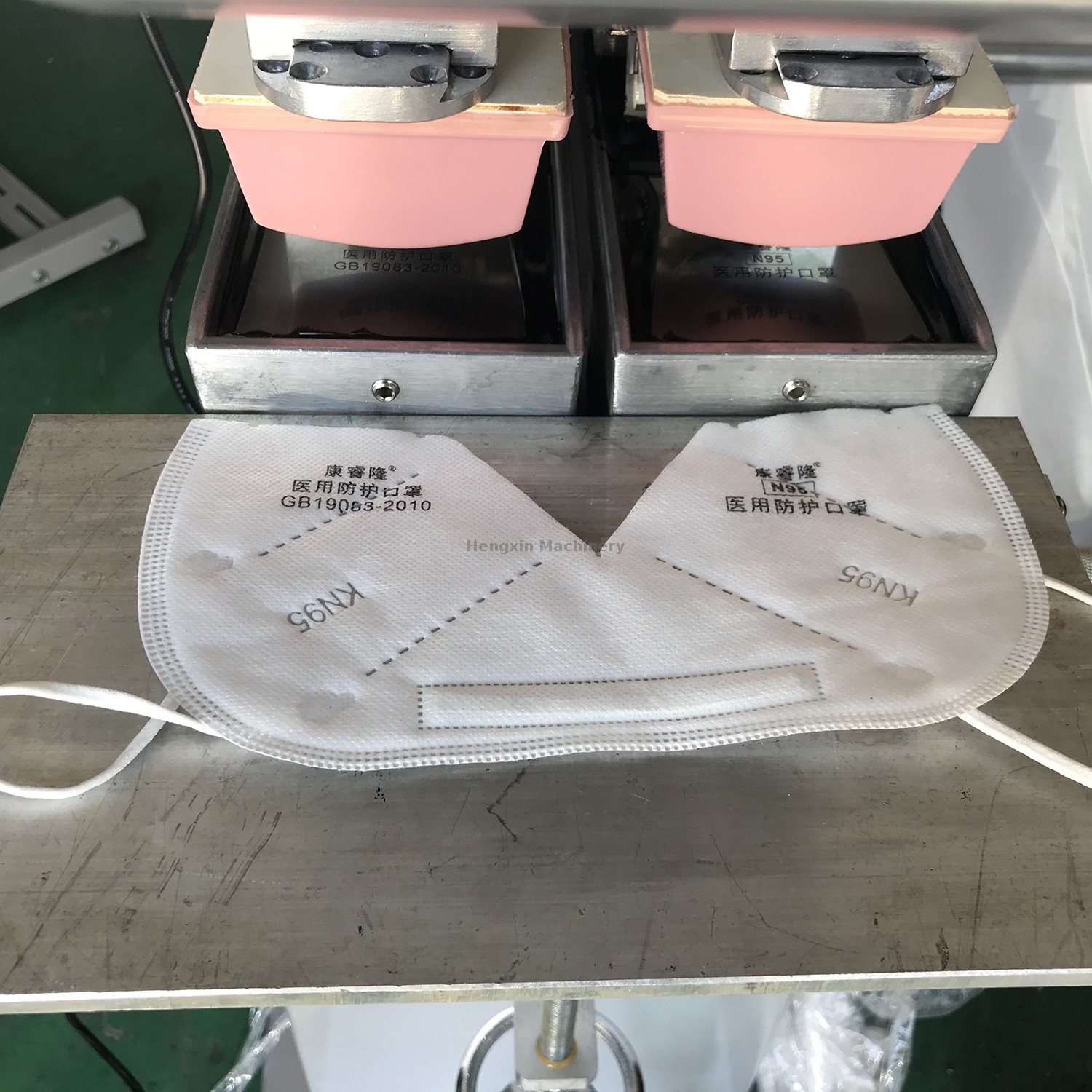

IMG_9414
